Product Details:
|
| Material: | Carbon Steel, | Diameter: | M16 |
|---|---|---|---|
| Surface: | Plain, Zinc Plated(Clear/Blue/Yellow/Black) | Sample: | All Sample Free |
| Standard: | ASME/ANSI B 18.2.1, DIN,JIS,BS | Grade: | 4.8 |
| Size: | 20x65mm | Product: | Drop In Anchor |
| High Light: | Galvanized Concrete Drop Anchors,Zinc Plated Concrete Drop Anchors,DIN Hex Structural Bolts |
||

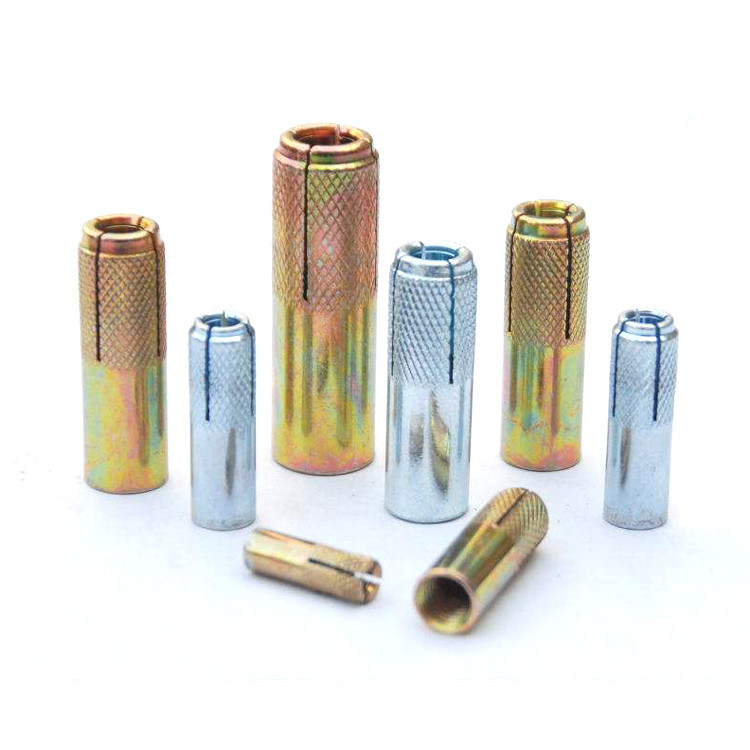

Galvanized Drop in anchor DIN standard 4.8 Grade Zinc Plated unifix In Concrete
A Drop-In anchor consists of a zinc plated steel tubular expansion shield and a solid, cone-shaped expander plug. The expander plug is case hardened and tempered to prevent galling and binding during expansion. The shield has four equally spaced slots for a portion of its length and the bottom part may be knurled. The shield also has a smooth, flangeless top that allows for either flush or countersunk installation. The bottom lip of the shield is tapered to allow maximum depth and holding power.
Technical data:
| Thread Size(A) | Anchor Dia.(B) | Thread Depth (D) |
Anchor Length (C) | Pull out Load (Kgs) | Qty.Per Box/Ctn | Weight Kgs/ 1000pcs |
| 1/4-20 | 3/8" | 1/2" | 1" | 1000 | 100/2000 | 11.0 |
| 3/8-16 | 1/2" | 5/8" | 1-9/16" | 2000 | 50/1000 | 28.0 |
| 1/2-13 | 5/8" | 3/4" | 2" | 3200 | 50/500 | 54.0 |
| 5/8-11 | 7/8" | 7/8" | 2-1/2" | 5400 | 25/200 | 141.0 |
| 3/4-10 | 1" | 1-1/4" | 3-1/8" | 7000 | 25/150 | 227.0 |
| M6 (W1/4) | 8.0 | 10 | 25 | 950 | 100/2000 | 6.3 |
| M8 (W5/16) | 10.0 | 14 | 30 | 1350 | 100/2000 | 12.5 |
| M10 (W3/8) | 12.0 | 15 | 40 | 1950 | 50/1000 | 25.0 |
| M12 (W1/2) | 16.0 | 20 | 50 | 2900 | 50/500 | 51.0 |
| M16 (W5/8) | 20.0 | 25 | 65 | 4850 | 25/200 | 112.0 |
| M20 (W3/4) | 25.0 | 35 | 80 | 5900 | 25/150 | 235.0 |
| Standard: ASME/ANSI DIN,ISO,JIS |
| Size: M6-M20, 1/4"-3/4" |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, SAE J429 Gr.2, SS304/316 |
| Thread: M, UNC, UNF |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
