Product Details:
|
| Material: | ASTM A193 B8 | Diameter: | 7/8" |
|---|---|---|---|
| Length: | 800mm, 50mm Thread On Each End | Grade: | A4-80 |
| Thread: | UNC | Sample: | All Sample Free |
| Surface: | Plain | Product: | A193 B8 Stainless Steel 304 Double Ends Thread Stud Bolt |
| High Light: | A4 B8 800mm double ended threaded bolt,800mm A193 B8 double ended threaded bolt,800mm A193 B8 ss stud bolt |
||

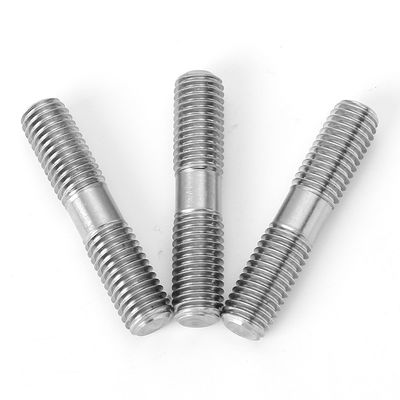

A193 B8 Stainless steel 304 double ends thread stud bolt
Stud bolt used in high pressure bolting situations for pipeline, drilling, petroleum / petrochemical refining and general industry for sealing and flange connections all thread, tap end and double end stud bolts are the lion’s share of the industry. The all thread stud bolt is a threaded rod with 2 heavy hex nuts, while the tap end and double end are nut continuously thread, but have a body in the middle with one nut. In a tap end the short end of the stud bolt is designed with a UNC 3A fit to go into a tapped hole on the body of a larger machined or forged equipment.
Type :
Full threads, Partial Threads, and customized as per requirements.
SIZE :
Nom Dia: ¼ to 4″ [6-100 mm]
Tailor made if required.
Length: As Per Standard or Upto any Length
SPECIFICATION / STANDARD :ASTM / ASME / BS / DIN / BS EN ISO
MATERIAL :C.S., M.S., Alloy Steel, Ferritic & Austenitic Stainless Steel
THREADS :UNC, 8UN, UNF, Metric Coarse & Fine Series.
SURFACE FINISH :
Self Color, Hot Dip Galvanized, Electro Galvanized, Di-Chromated, P.T.F.E. Coated or any other as per order requirement
ASTM A193 B7 Alloy steel, AISI 4140 or 4142, quenched and tempered
ASTM A193 B6 Stainless steel, AISI 410, heat treated
ASTM A193 B8 Class 1 Stainless steel, AISI 304, carbide solution treated.
ASTM A193 B8M Class 1 Stainless steel, AISI 316, carbide solution treated.
ASTM A193 B8 Class 2 Stainless steel, AISI 304, carbide solution treated, strain hardened
ASTM A193 B8M Class 2 Stainless steel, AISI 316, carbide solution treated, strain hardened
ASTM A193 B8T Class 1 or 2 Stainless steel, AISI 321, with additional element of Titanium
ASTM A193 B16 Chromium-Molybdenum-Vanadium, similar to B7 with Vandium added
ASTM A193 B7M Similar properties as B7 but with specialized heat treating to create differing mechanical properties
ASTM A193 B8R Stainless steel, AISI 209, also known as Nitronic 50, nitrogen strengthened
ASTM A193 B8S Stainless Steel, AISI 218, also known as Nitronic 60, nirtrogen strengthened
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
| A193 MECHANICAL PROPERTIES | |||||||
| Grade | Size | Tensile, ksi, min | Yield, ksi, min | Elong. % min | RA min | HBW, max | HRC, max |
| B7 | up to 2-1/2" | 125 | 105 | 16 | 50 | 321 | 35 |
| 2-5/8" - 4" | 115 | 95 | 16 | 50 | |||
| 4-1/8" - 7" | 100 | 75 | 18 | 50 | |||
| B8 Class 1 | all | 75 | 30 | 30 | 50 | 223 | 35 |
| B8 Class 2 | up to 3/4" | 125 | 100 | 12 | 35 | 321 | 35 |
| 7/8" - 1" | 115 | 80 | 15 | 35 | |||
| 1-1/8" - 1-1/4" | 105 | 65 | 20 | 35 | |||
| 1-3/8" - 1-1/2" | 100 | 50 | 28 | 45 | |||
| B8M Class 1 | all | 75 | 30 | 30 | 50 | 223 | 96 |
| B8M Class 2 | up to 3/4" | 110 | 95 | 15 | 45 | 321 | 35 |
| 7/8" - 1" | 100 | 80 | 20 | 45 | |||
| 1-1/8" - 1-1/4" | 95 | 65 | 25 | 45 | |||
| 1-3/8" - 1-1/2" | 90 | 50 | 30 | 45 | |||
| B16 | under 2-1/2" | 125 | 105 | 18 | 50 | 321 | 35 |
| over 2-1/2" - 4" | 110 | 95 | 17 | 45 | |||
| over 4" - 8" | 100 | 85 | 16 | 45 |
|||
| A193 CHEMICAL PROPERTIES | ||||
| Element | Grade B7 | Grade B8 | Grade B8M | Grade B16 |
| Carbon | 0.37 - 0.49% | 0.08% max | 0.08% max | 0.36 - 0.47% |
| Manganese | 0.65 - 1.1% | 2.0% max | 2.0% max | 0.45 - 0.7% |
| Phosphorus, max | 0.04% | 0.05% | 0.05% | 0.04% |
| Sulfur, max | 0.04% | 0.03% | 0.03% | 0.04% |
| Silicon | 0.15 - 0.35% | 1.0% max | 1.0% max | 0.15 - 0.35% |
| Chromium | 0.75 - 1.2% | 18.0 - 20.0% | 16.0 - 18.0% | 0.8 - 1.15% |
| Nickel | 8.0 - 11.0% | 10.0 - 14.0% | ||
| Molybdenum | 0.15 - 0.25% | 2.0 - 3.0% | 0.5 - 0.65% | |
| Vanadium | 0.25 - 0.35% | |||
| Aluminum, max | 0.02% | |||
| A193 RECOMMENDED HARDWARE | ||
| Grade | Nut | Washer |
| B7 | A194 Grade 2H | F436 |
| B8 Class 1 | A194 Grade 8 | 304 Stainless |
| B8 Class 2 | A194 Grade 8 | 304 Stainless |
| B8M Class 1 | A194 Grade 8M | 316 Stainless |
| B8M Class 2 | A194 Grade 8M | 316 Stainless |
| B16 | A194 Grade 7 | F436 |
