Product Details:
|
| Material: | 1035 | Diameter: | 5/8" |
|---|---|---|---|
| Length: | 1000mm | Grade: | Grade 5 |
| Thread: | UNF | Sample: | All Sample Free |
| Surface: | Plain | Product: | Plain Surface J429 Grade 5 Fine Full Threaded Concrete Foundations L Anchor Bolt |
| High Light: | J429 l shaped threaded bolts,J429 l hook anchor bolts,UNF l type foundation bolt |
||

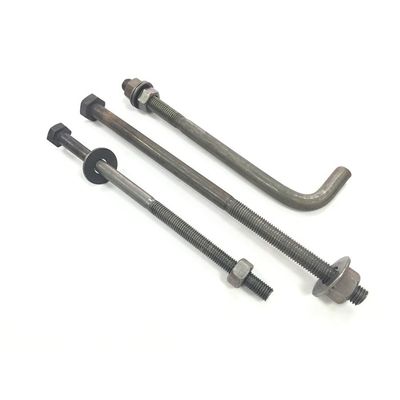

Plain surface J429 Grade 5 fine full threaded concrete foundations L anchor bolt
The L-Bolt anchor bolts are used to attach sill plates to concrete or masonry foundations, provide anchorage for light weight post bases and for general anchorage to concrete. The L-Bolt anchor bolts meet the prescriptive requirements of article 9.23.
Type :
Full threads, Partial Threads, and customized as per requirements.
SIZE :
Nom Dia: ¼ to 4″ [6-100 mm]
Length: As Per Standard or Upto any Length
SPECIFICATION / STANDARD :ASTM / ASME / BS / DIN / BS EN ISO
MATERIAL :C.S., M.S., Alloy Steel, Ferritic & Austenitic Stainless Steel
THREADS :UNC, 8UN, UNF, Metric Coarse & Fine Series.
SURFACE FINISH :Self Color, Hot Dip Galvanized, Electro Galvanized, Di-Chromated, P.T.F.E. Coated or any other as per order requirement
| J429 MECHANICAL PROPERTIES | ||||||||
| Grade | Size | Full Size Proofload, psi | Yield Strength, psi min. | Tensile Strength, psi min. | Elong. min. | RA min. | Core Hardness, Rockwell | Tempering Temperature |
| 2 | 1/4" - 3/4" | 55,000 | 57,000 | 74,000 | 18 | 35 | B80 to B100 | NA |
| over 3/4" - 1-1/2" | 33,000 | 36,000 | 60,000 | 18 | 35 | B70 to B100 | ||
| 5 | 1/4" - 1" | 85,000 | 92,000 | 120,000 | 14 | 35 | C25 to C34 | 800F |
| over 1" - 1-1/2" | 74,000 | 81,000 | 105,000 | 14 | 35 | C19 to C30 | ||
| 8 | 1/4" - 1-1/2" | 120,000 | 130,000 | 150,000 | 12 | 35 | C33 to C39 | 800F |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
