Product Details:
|
| Material: | 1035 | Grade: | A307 GRADE B |
|---|---|---|---|
| Size: | 3/8" | Length: | 40mm |
| Surface: | Black | Thread: | UNC |
| Mark: | Manufacturer's ID And A307 B | Product Name: | Black Finish ASTM A563 Grade A Hex Nut With Heavy Hex Structural Bolts A307 GRADE B |
| Highlight: | ASTM A563 heavy hex structural bolts,40mm black hex head bolts,A307 heavy hex structural bolts |
||

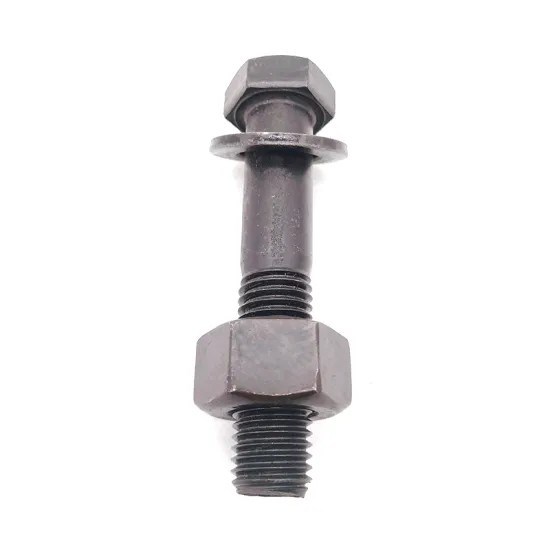

Black finish ASTM A563 Grade A hex nut with heavy hex structural bolts A307 GRADE B
Heavy hex bolts have a head that is larger than a standard (finish) hex head. Standard heavy hex structural bolts are made of low to mid carbon steel. The large head offers a greater bearing surface that distributes the clamping load over a greater area.
The ASTM A307 specification covers carbon steel bolts and studs ranging from 1/4" through 4" diameter. This is your everyday, run of the mill bolt specification often manufactured using A36 round bar. There are three grades A, B, and C which denote tensile strength, configuration, and application.
SIZE: 1/4" - 1.1//2", M6 -M36. And 600mm Max length.
STANDARD: ASME B18.2.6
THREAD: ASME B1.1 , UNC, UNF, CLASS 2A
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.
|
Bolt Grades |
|
|
Type |
Description |
|
Grade A |
Bolts with a minimum tensile strength of 60 ksi, intended for general purpose applications. |
|
Grade B |
Bolts with a tensile strength between 60 to 100 ksi and intended for flanged joints in piping systems. |
|
Grade C |
Replaced with ASTM F1554 Grade 36 Specification |
|
Chemical Composition |
||
|
Element |
Grade A |
Grade B |
|
Carbon |
0.29 |
0.29 |
|
Manganese, max |
1.2 |
1.2 |
|
Phosphorus, max |
0.04 |
0.04 |
|
Sulfur, max |
0.15 |
0.05 |
|
Mechanical Properties |
||||
|
Bolt Grade |
Diameter, Inch |
Tensile Strength, ksi |
Elongation, % |
Hardness, BHN |
|
A |
1/4 to 4, Inclusive |
60 |
18 |
121 - 241 |
|
B |
1/4 to 4, Inclusive |
60 - 100 |
18 |
121 - 212 |
|
Recommended Nuts & Washers |
|||
|
Bolt Specification |
Bolting Diameter, Inch |
Nut Specification |
Washer Specification |
|
A307 Grade A |
1/4 to 4, Inclusive |
ASTM A563 Grade A |
ASTM F844 |
| A307 Grade B | |||
