Product Details:
|
| Material: | Stainless Steel 347 | Grade: | ASTM A193 8C |
|---|---|---|---|
| Thread: | UNC | Diameter: | M10 |
| Length: | 30mm | Sample: | All Sample Free |
| Surface: | Plain, | Product: | A193 Grade B8C Stainles Steel 347 Galvanized With Two Hex Nut U Bolt M10 |
| High Light: | ASTM A193 8C Stainless Steel U Bolts,347ss round bend u bolts,ASTM A193 8C M10 Stainless Steel U Bolts |
||

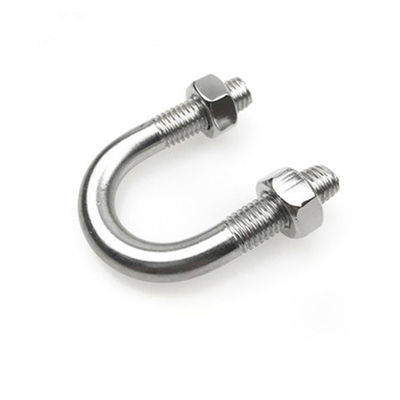

A193 Grade B8C stainles steel 347 with two hex nut u bolt m10
A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.
U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting. U-bolts are also used to hold ropes together.
For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the U-bolt.
The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.
As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar, then a more convenient measurement system needs to be used.
| Standard: ASME/ANSI B 18.2.1, DIN.ISO,JIS. |
| Size: 1/4”-4”, M5-M64 |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; SAE J429 Gr.2, 5,8; B8,B8M,B8T |
| Thread: UNC, UNF,UN |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
