Product Details:
|
| Material: | SAE J429 Grade 2 | Surface: | Galvanized, ZP |
|---|---|---|---|
| Tensile Strength:: | 400MPa | Diameter: | 5/16" |
| Length: | 400mm | Thread: | UNC |
| Standard: | ASME/ANSI B 18.2.1, | Product: | ASME/ANSI B 18.2.1 SAE J429 Grade 2 Partially Threaded Galvanized Hex Cap Screw |
| High Light: | SAE J429 grade 2 Hex Cap Screw,SAE J429 grade 2 m10x20 hex bolt,ZP 400mm Grade 2 Hex Cap Screw |
||

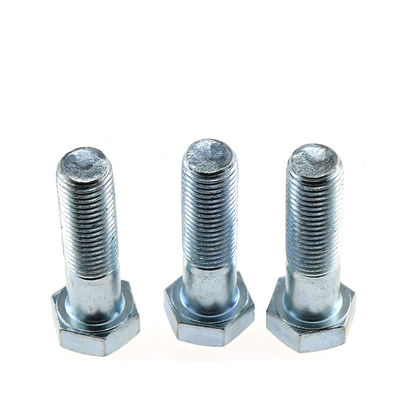

ASME/ANSI B 18.2.1 SAE J429 grade 2 partially threaded galvanized hex cap screw
Hex cap screws may have a built-in shoulder (un-threaded area under the head) which increases tensile strength of the bolt. However, the threaded length of these screws may be limited and therefore, they are not suitable for all applications. Cap screws are typically fully threaded up to 1-1/4″, hex cap bolts over this length are almost always partially threaded. Hex cap screws are available in diameters 1/4″ and up.
| Standard: ASME/ANSI B 18.2.1, IFI149,DIN931, DIN933, DIN558, DIN960, DIN961, DIN558, ISO4014 |
| Size: 1/4”-3”, M5-M64 |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; SAE J429 Gr.2, 5,8;A2-70,A4-80 |
| Thread: M, UNC, UNF,UN8 |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G,etc. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
