Product Details:
|
| Material: | C1045 | Grade: | ASTM A325, |
|---|---|---|---|
| Size: | 3/4" | Length: | 60mm |
| Surface: | Black , Black Oxide | Thread: | UNC |
| Mark: | Manufacturer's ID And A325 | Product Name: | ASTM A325 Black Color With F436 Washer ASME B18.2.1 Heavy Hex Bolt |
| High Light: | ASME B18.2.1 Heavy Hex Bolts,ASTM A325 m6x16 hex bolt,ASTM A325 m6x16Heavy Hex Bolts |
||

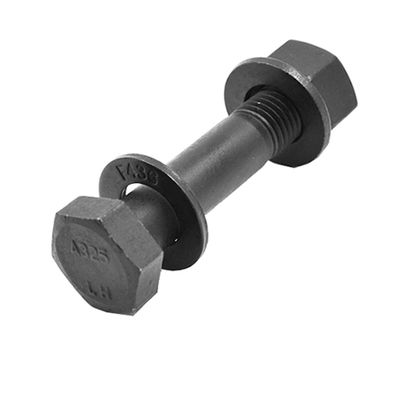

ASTM A325 Black color with F436 washer ASME B18.2.1 heavy hex bolt
Heavy hex bolts can be used for many different applications that include fastening wood, steel, and other construction materials for projects such as docks, bridges, highway structures, and buildings. Heavy hex bolts with forged heads are also commonly used as headed anchor bolts.
SIZE: 1/4" - 1.1//2", M6 -M36. And 600mm Max length.
STANDARD: ASME B18.2.6
THREAD: ASME B1.1 , UNC, UNF, CLASS 2A
FINISHED: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Dacromet, H.D.G.
| A325 Types | |
| TYPE 1 | Medium carbon, carbon boron, or medium carbon alloy steel. |
| TYPE 2 | Withdrawn November 1991. |
| TYPE 3 | Weathering steel. |
| T | Fully threaded A325. (Restricted to 4 times the diameter in length) |
| M | Metric A325. |
| A325 Mechanical Properties | ||||
| Size | Tensile, ksi | Yield, ksi | Elong. %, min | RA %, min |
| 1/2-1" | 120 min | 92 min | 14 | 35 |
| 1.1/8"-1.1/2" | 105 min | 81 min | 14 | 35 |
| A325 Type 1 Chemical Properties | ||
| Heat Analysis | 120ksi, % | 150ksi, % |
| Carbon | 0.30 – 0.52 | 0.30 – 0.48* |
| Manganese | 0.60 min | 0.60 min |
| Phosphorus | 0.035 max | 0.035 max |
| Sulfur | 0.040 max | 0.040 max |
| Silicon | 0.15 – 0.30 | - |
| Boron | 0.003 max | 0.003 max |
| Copper | - | - |
| Nickel | - | - |
| Chromium | - | - |
| Molybdenum | - | - |
| A325 Type 3 Chemical Properties | ||||
| Heat Analysis | 120ksi, % Comp A | 120ksi, % Comp B | 120ksi, % Index | 150ksi, % Index |
| Carbon | 0.33 – 0.40 | 0.38 – 0.48 | 0.30 – 0.52 | 0.30 – 0.53 |
| Manganese | 0.90 – 1.20 | 0.70 – 0.90 | 0.60 min | 0.60 min |
| Phosphorus | 0.035 max | 0.035 max | 0.035 max | 0.035 max |
| Sulfur | 0.040 max | 0.040 max | 0.040 max | 0.040 max |
| Silicon | 0.15 – 0.30 | 0.30 – 0.50 | ||
| Copper | 0.25 – 0.45 | 0.20 – 0.40 | 0.20 – 0.60 | 0.20 – 0.60 |
| Nickel | 0.25 – 0.45 | 0.50 – 0.80 | 0.20 min | 0.20 min |
| Chromium | 0.45 – 0.65 | 0.50 – 0.80 | 0.20 min | 0.20 min |
| Molybdenum | 0.06 max | 0.10 min | 0.10 min | |
| A325 RECOMMENDED HARDWARE | |||
| Type | Finish | Nut | Washer |
| Type 1 | plain | A563 Grade C, C3, D, DH, DH3 | F436 Type 1 |
| galvanized | A563 Grade DH | F436 Type 1 | |
| Type 3 | plain | A563 Grade C3, DH3 | F436 Type 3 |
