Product Details:
|
| Standard: | DIN1624 | Size: | M5-M10 |
|---|---|---|---|
| Surface: | Blue Zinc | Material: | Carbon Steel Q235 |
| Grade: | CL 4 | Thread: | UNC |
| Sample: | 10pcs Free | Product Name: | Carbon Steel Thread Insert White Blue Zinc 4 Prong Wooden Tee Nuts |
| High Light: | M5 CL 4 Pronged Tee Nuts,CL 4 Q235 pronged t nut,CL 4 Q235 Pronged Tee Nuts |
||

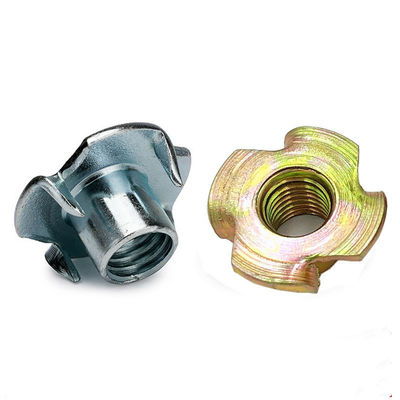

Carbon steel thread insert white blue zinc 4 prong wooden tee nuts
T-nuts and are more effective than wood screws. They are less likely to strip, or cause cracks or splits in any type of wood. Parts can be mass-produced with T-nuts, assembled and reassembled for shipping purposes, or packaged as a kit. T-nuts resist movement and vibration, and can be tightened at regular intervals. Because they have prongs, t-nuts grip softer materials, such as particle board, better than wood screws, which tend to strip.
|
Nominal Size |
Thread Pitch (p) |
Overall height (h) |
Prong Height (a) |
Width of base (d2) |
|
|
|
Ref. |
Ref. |
Ref. |
|
#10 |
24 |
5/16. |
7/32. |
3/4. |
|
1/4. |
20 |
5/16. |
7/32. |
3/4. |
|
1/4. |
20 |
7/16. |
5/16. |
3/4. |
|
5/16. |
18 |
3/8. |
1/4. |
7/8. |
|
5/16. |
18 |
5/8. |
5/16. |
7/8. |
|
3/8. |
16 |
7/16. |
11/32. |
1 |
|
Nominal Size |
Thread Pitch (p) |
Overall height (h) |
Prong Height (a) |
Width of base (d2) |
|
|
|
Ref. |
Ref. |
Ref. |
|
M4 |
0.7 |
6 |
5 |
15 |
|
M5 |
0.8 |
8 |
7 |
17 |
|
M6 |
1 |
9-12. |
7 |
19 |
|
M8 |
1.25 |
11-15. |
9 |
22 |
|
M10 |
1.5 |
13 |
11 |
25 |
|
Standard: ASME/ANSI ,DIN1624 |
|
Size: 1/4",5/16",3/8",7/16", M5-M12 |
|
Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
|
Grade: Class 4. SAE J429 Gr.2, B8,B8M,B8T |
|
Thread: UNC, UNF,UN |
|
Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
