Product Details:
|
| Material: | Stainless Steel 316 | Diameter: | M10 |
|---|---|---|---|
| Length: | 65mm | Grade: | A4-80 |
| Surface: | Plain | Sample: | All Sample Free |
| Standard: | ASME/ANSI B 18.2.1, DIN603 | Product Name: | A4-80 A193 B8M Stainless Steel 316 Full Thread Plain Surface Carriage Bolt |
| High Light: | SS316 Square Neck Carriage Bolt,65mm grade 5 carriage bolt,M10 Square Neck Carriage Bolt |
||

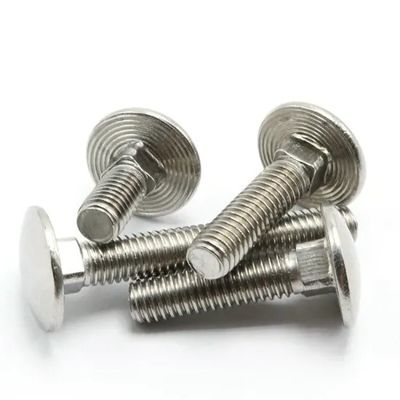

A4-80 A193 B8M Stainless steel 316 full thread plain surface carriage bolt
carriage bolts resist turning by having a square step under the head that presses into the wood the first time you tighten it. The top of the hole should now be square. If that square hole gets rounded, as they often do, the bolt will spin making impossible to tighten the nut.
| Standard: ASME/ANSI B 18.2.1, DIN603,DIN608 |
| Size: 1/4”-1”, M5-M12 |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; SAE J429 Gr.2, 5,8; B8,B8M,B8T |
| Thread: UNC, UNF,UN |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
Contact Person: Mr. Frank
Tel: 18516086900
