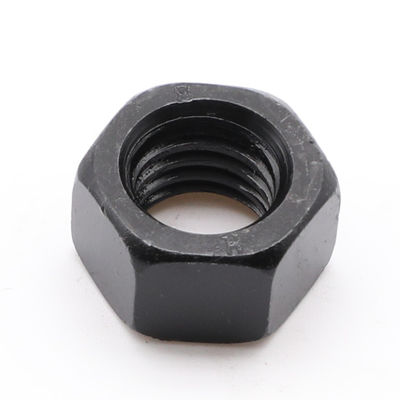

Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6

Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6
Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6 Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6 Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6

Large Image :  Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6

Product Details:
Place of Origin: CHINA
Brand Name: PM
Certification: ISO
Model Number: M6-M64, 1/4"-4"
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: USD 0.0015-2 PER PCS
Packaging Details: 25kgs/carton and 36 cartons on standard export wooden pallets
Delivery Time: 15-25DAYS PER CONTAINER
Payment Terms: L/C, T/T
Supply Ability: 500tons per month

Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6

Description
Standard: DIN934, UNI5588, ISO 4032, ASME/ANSI B 18.2.4.1 Size: M6
Surface: Plain, Zinc Plated ( Clear/Blue/Yellow/Black ), Black Oxide, Nickel, Chrome, HDG Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass
Grade: SAE J995 Gr.2,5,8; CL4, 5, 6, 8, 10, 12 Thread: UNC, UNF, UN,BSW
Sample: All Sample Free Product Name: DIN934 M6 Low Carbon Steel Class 4 Black Finish Hex Head Nuts
High Light:

SAE J995 Gr.8 Hex Head Nuts

,

M6 SAE J995 Gr.8 black Hex Nuts

,

M6 SAE J995 Gr.8 Hex Head Nuts

DIN934 M6 low carbon steel class 4 black finish hex head nuts







  • We produce premium quality Hex Nuts from various metals & metal alloys with ASTM/ASME/DIN Standards & Specifications.
  • We produce different types of nuts hot forged cold formed nuts in almost all shapes & sizes.
  • We also provide passivation,quality coating further processing as per client's requirement.We manufacture these hex nuts in variety of material grades & as per ASTM A194,A563,A594,F467,ISO 4032 etc.
  • We produce these hex nuts strictly as per DIN 934,DIN 555, ISO 4032 standards & as per client's drawings.

Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6 0

Standard: DIN934, UNI5588, ISO 4032, ASME/ANSI B 18.2.4.1

Size: 1/4”-3”, M5-M64
Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass

Grade: SAE J995 Gr.2,5,8; CL4, 5, 6, 8, 10, 12

Thread: M, UNC, UNF,BSW
Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G.



Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet

b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet

Supply Ability:1000 tons per month

MinimumOrder:200kgs for each specification

Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP

Payment :T/T, L/C , D/A , D/P , Western Union,etc

Market:South&north Amrica/Europe/ etc.


      Class 4 Black Hex Nuts Low Carbon Steel Hex Head Nuts DIN934 M6 1







d s max. e min. m max.
M2 4 4.32 1.6
M2.5 5 5.45 2
M2.6 5 5.45 2
M3 5.5 6.01 2.4
M3.5 6 6.58 2.8
M4 7 7.66 3.2
M5 8 8.79 4
M6 10 11.05 5
M7 11 12.12 5.5
M8 13 14.38 6.5
M10 17 18.9 8
M12 19 21.1 10
M14 22 24.49 11
M16 24 26.75 13
M18 27 29.56 15
M20 30 32.95 16
M22 32 35.03 18
M24 36 39.55 19
M27 41 42.2 22
M30 46 50.85 24
M33 50 55.37 26
M36 55 60.79 29
M39 60 66.44 31
M42 65 71.3 34
M45 70 76.95 36
M48 75 82.6 38
M52 80 88.25 42
M56 85 93.56 45
M60 90 99.21 48
M64 95 104.86 51
