Product Details:
|
| Material: | Alloy Steel | Diameter: | 1/4 |
|---|---|---|---|
| Length: | 50mm | Surface: | Zinc Plated |
| Grade: | SAE J429 Gr.8; | Standard: | ASME/ANSI B 18.2.1, DIN608 |
| Product Name: | SAE J429 Grade 8 Zinc Plated Full Thread UNC Galvanized Plow Bolt | Sample: | All Sample Free |
| High Light: | UNC 50mm Plow Bolts,SAE J429 Gr.8 galvanized steel bolt,SAE J429 Gr.8 Plow Bolts |
||

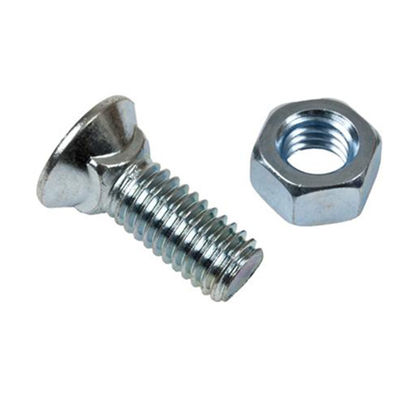

SAE J429 grade 8 zinc plated full thread UNC galvanized plow bolt
Plow bolts feature a countersunk, flat head, square neck, and unified thread pitch. They are commonly used in road graders, scoop shovels, and other heavy-duty industrial equipment where a flat, smooth surface is required. Grade-5 plow bolts are made from a medium-grade, heat-treated carbon steel, whereas Grade-8 plow bolts are made from heat-treated alloy steel and provide greater tensile and proof load strength. The most popular uses for Grade-8 are bulldozers and snowplow blades.
| Plow Bolts | |||||||||||
| D | E | A | F | S | B | ||||||
| Nominal or Basic Product Diameter | Full Size Body Diameter | Diameter of Head | Feed Thickness | Depth of Square and Head | Width of Square | ||||||
| Max | Min | Max | Min Sharp | Abs. Min with Flat | Max | Max | Min | Max | Min (Basic) | ||
| 5/16 | 0.3125 | 0.312 | 0.299 | 0.505 | 0.578 | 0.563 | 0.025 | 0.269 | .243 | .325 | 0.313 |
| 3/8 | 0.375 | 0.375 | 0.36 | 0.577 | 0.671 | 0.656 | 0.031 | .312 | .281 | 0.387 | .375 |
| 7/16 | 0.4375 | 0.438 | 0.421 | 0.65 | 0.781 | 0.766 | 0.036 | .364 | .328 | 0.45 | .438 |
| 1/2 | 0.5 | 0.5 | 0.483 | 0.722 | 0.89 | 0.875 | 0.042 | .417 | .375 | 0.515 | .500 |
| 5/8 | 0.625 | 0.657 | 0.606 | 866 | 1.094 | 1.063 | 0.05 | .506 | .456 | 0.64 | .625 |
| 3/4 | 0.5625 | 0.782 | 0.729 | 0.938 | 1.25 | 1.219 | 0.05 | .541 | .491 | 0.765 | .750 |
| 7/8 | 0.875 | 0.938 | 0.853 | 1.083 | 1.469 | 1.406 | 0.063 | .626 | .563 | 0.906 | .875 |
| 1 | 1 | 1.062 | 0.976 | 1.299 | 1.594 | 1.594 | 0.063 | .690 | .627 | 1.031 | 1.000 |
| Standard: ASME/ANSI B 18.2.1,DIN608 |
| Size: 1/4”-1.1/2”, M5-M36 |
| Material: Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9; SAE J429 Gr.2, 5,8; |
| Thread: M, UNC, UNF |
| Finish: Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G. |
Packaging Details: a. bulk in cartons (<=25kg )+ 36CTN/wood solid Pallet
b. bulk in cartons 9"x9"x5" (<=18kg )+ 48CTN/wood solid Pallet
Supply Ability:1000 tons per month
MinimumOrder:200kgs for each specification
Trade Term:FOB/CIF/CFR/CNF/EXW/DDU/DDP
Payment :T/T, L/C , D/A , D/P , Western Union,etc
Market:South&north Amrica/Europe/ etc.
Contact Person: Mr. Frank
Tel: 18516086900
